How to Dip Coat Metal Parts: A Step-by-Step Industrial Process

What is dip coating and when is it used?

Dip coating is a coating application method where parts are physically immersed into a liquid coating bath. The process relies on gravity and surface tension to move the coating onto the workpiece. It is often selected for small, irregular, or complex metal parts where spray or roll application would be difficult.

The technique is common in the coating of electrical connectors, fasteners, and small mechanical components. It produces a consistent film thickness because the part is fully surrounded by the coating material. The primary advantage is speed and uniformity on complex shapes. The primary limitation is the need for precise control over the coating viscosity and the drying environment.

What are the prerequisites for a successful dip coating operation?

Before any part enters the bath, the facility must be ready. This involves equipment calibration, material selection, and environmental control. The following items must be verified before production begins.

1. Surface Condition: Metal parts must be clean and free of oils, dust, and oxide scales. A degreasing step is mandatory.
2. Coating Viscosity: The liquid coating must be measured. If the viscosity is too low, the film will be thin and weak. If it is too high, the coating will be thick and prone to runs.
3. Bath Temperature: The temperature of the coating liquid must be within the manufacturer’s specified range. This affects flow behavior and drying time.
4. Drying Equipment: Ovens, hot air tunnels, or curing racks must be pre-heated. Parts must be dried immediately after removal to prevent solvent evaporation issues.

Step-by-step dip coating procedure

The following sequence describes the standard industrial process for dip coating metal parts. Each step has a specific reason for its execution.

1. Pre-treatment and Cleaning
   Wash the metal parts using a degreaser or a solvent bath. This removes manufacturing oils and handling contaminants. A clean surface is required for the coating to adhere properly. If oil remains, the coating will not bond, leading to peeling during use.

2. Rinse and Dry
   Rinse the parts with clean water or a compatible solvent. Then, dry them with compressed air or in a drying oven. Moisture under the coating can cause blistering or poor adhesion. The surface must be dry before it contacts the coating bath.

3. Viscosity Check of the Coating
   Measure the viscosity of the coating liquid in the bath. Use a viscometer or a flow cup. The value must match the target specification for the part size. Viscosity directly controls the film thickness left on the part.

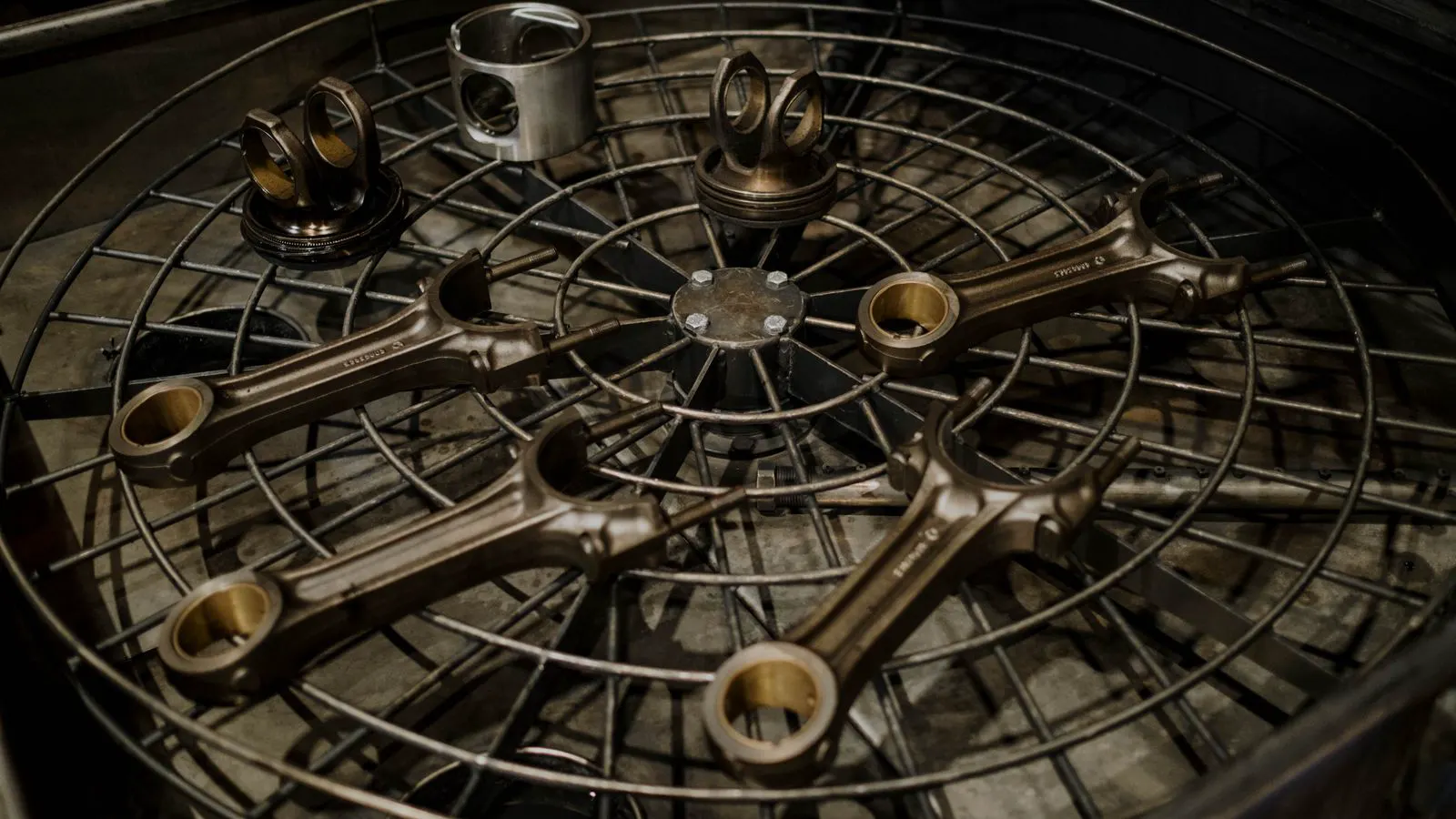

4. Immersion
   Lower the part into the coating bath at a controlled speed. The speed is usually measured in inches per minute or millimeters per minute. A slow speed allows the coating to drain evenly from the surface. A fast speed traps air bubbles and causes an uneven film.

5. Dwell Time
   Keep the part submerged for a specific period. This allows the coating to flow into recessed areas and level out. The time depends on the part geometry and the coating thickness required. Insufficient dwell time leads to thin spots in complex areas.

6. Withdrawal
   Lift the part out of the bath at a controlled speed. The withdrawal speed is critical. If the part is lifted too fast, the coating will be too thick and may run. If lifted too slow, the coating may be too thin. The goal is to let excess liquid drain back into the bath.

7. Initial Drying
   Move the part to a drying area immediately. This is often a hot air tunnel or a drying oven. The heat removes the solvent from the coating. This step prevents the coating from remaining wet for too long, which can cause defects like sagging or wrinkling.

8. Curing
   Subject the part to a curing process. This may involve a higher temperature for a longer duration. Curing transforms the coating from a wet film to a hard, solid material. It develops the final hardness, chemical resistance, and durability of the coating.

9. Inspection
   Visually inspect the part for defects. Look for runs, pinholes, or dry spots. Check the film thickness if required. Any part that fails inspection must be reworked or scrapped. This step ensures that only quality parts proceed to the next stage.

How to control film thickness in dip coating

Film thickness is the most critical variable in dip coating. It affects the cost, the performance, and the appearance of the finished part. Several factors influence the thickness of the coating left on the metal.

Factor	Effect on Film Thickness	Control Method
Coating Viscosity	Higher viscosity results in a thicker film.	Adjust with thinner or solvent.
Immersion Speed	Slower speed allows more coating to adhere.	Use an automated lift mechanism.
Withdrawal Speed	Slower withdrawal leaves a thicker film.	Adjust the speed of the lift.
Part Surface Area	Larger surface areas drain more liquid.	Account for shape in calculations.
Bath Temperature	Lower temperature increases viscosity.	Maintain consistent bath heat.

To maintain a specific thickness, operators must monitor these variables. A change in one variable can be compensated by adjusting another. For example, if the viscosity drops, the withdrawal speed can be slowed to maintain the target thickness.

Common mistakes in dip coating

Even with the correct procedure, defects can occur. These mistakes are common in industrial settings and often result in rejected batches. Understanding them helps prevent quality issues.

1. Inadequate Surface Preparation
   This is the most frequent cause of coating failure. Oils, dust, or moisture on the metal prevent the coating from bonding. The result is peeling, blistering, or poor adhesion. Always verify the cleaning process before starting.

2. Incorrect Viscosity
   If the coating is too thin, the film will be weak and may not cover the part. If it is too thick, the coating will run and drip. This wastes material and creates uneven surfaces. Measure viscosity regularly and adjust as needed.

3. Improper Withdrawal Speed
   Lifting the part too quickly traps air bubbles and causes an uneven film. Lifting too slowly leaves a film that is too thick. The speed must be consistent and calibrated for the specific part size and coating type.

4. Contaminated Bath
   Dust, debris, or dried coating flakes in the bath will adhere to the parts. This creates rough spots or pinholes in the finished coating. The bath must be filtered regularly, and the area above the bath must be kept clean.

5. Inadequate Drying
   If the parts are not dried properly, the solvent may remain trapped in the coating. This can cause wrinkling, blistering, or poor adhesion. Ensure the drying temperature and time are sufficient for the coating thickness.

How to verify the quality of a dip coated part

Final verification is the last step in the process. It confirms that the coating meets the required specifications. This step protects the customer and reduces warranty claims.

1. Visual Inspection
   Examine the part under good lighting. Look for any visible defects such as runs, drips, pinholes, or dry spots. A magnifying glass or a microscope may be needed for small parts.

2. Thickness Measurement
   Use a coating thickness gauge to measure the film thickness. Compare the result to the target specification. This ensures that the coating is thick enough to provide the required protection.

3. Adhesion Testing
   Perform an adhesion test to check the bond between the coating and the metal. Common methods include cross-cut testing or pull-off testing. The results must meet the minimum requirements for the application.

4. Chemical Resistance Testing
   If the part will be exposed to chemicals or moisture, test the coating’s resistance. This may involve immersion in a specific solution for a set period. Check for any signs of degradation or failure.

5. Documentation
   Record all parameters from the production run. This includes viscosity, bath temperature, withdrawal speed, and drying time. This documentation is essential for quality control and for troubleshooting if issues arise in the future.
